Introduction

This is an implementation of the Hopfield Network for COMP5400M Bio-Inspired Computing: Coursework 2. The task is to evaluate image reconstruction using synchronous pattern recovery, and compare results with the asynchronous approach and Self-Organising Map. Experiments are performed using the MNIST dataset.

Hopfield Network

Hopfield networks are recurrent neural networks that serve as autoassociative memory systems. This means that they can store patterns and retrieve them later from noisy input.

In this implementation, the Hebb rule is used to train the network. This approach can be summarized as: Neurons that fire together, wire together. Training requires input vectors to be -1 or 1, so MNIST images are binarized while preprocessing.

For pattern recovery, the synchronous approach is used, which applies the \(sign(x)\) function to the multiplication of the weight matrix by the input vector.

Limitations

Spurious states in Hopfield Networks are bogus patterns, absent from the the training data, that correspond to local minima in the energy function. They can be composed of combinations of the original patterns or the negation of a particular pattern in the training set. These arise when the ration P/N becomes too high, where P is the number of patterns to be learnt, and N is the number of neurons in the network.

An illustration of the same using synchronous hopfield is given below:

Reconstruction Sample

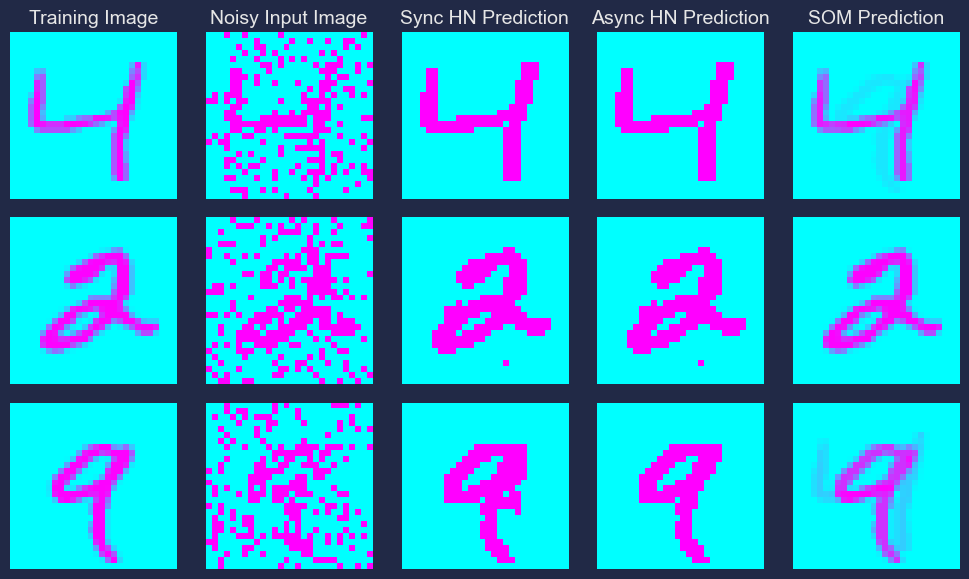

The image below shows an example of the inputs, outputs and predictions for the image reconstruction task, using all 3 approaches.

Note: Visualisation for Asynchronous Hopfield Network is done using Ruchita Mijagiri’s code
